ARO pattern 351©

1984-86 CHRYSLER LEBARON

1984-86 DODGE 600
CUSTOMER ORDERED NEW TOP AND GLASS IN A35 BUCKSKIN MID-FEBRUARY 2017.
HAD QUESTIONS AFTER HAVING IT INSTALLED - WASN'T SURE IF WE SENT THE WRONG ITEM OR IT WAS IMPROPERLY INSTALLED.
SUPPOSEDLY INSTALLED BY A "PROFESSIONAL" INSTALLER

PICTURES WERE SENT AND WE ADDED COMMENTS - SEE BELOW

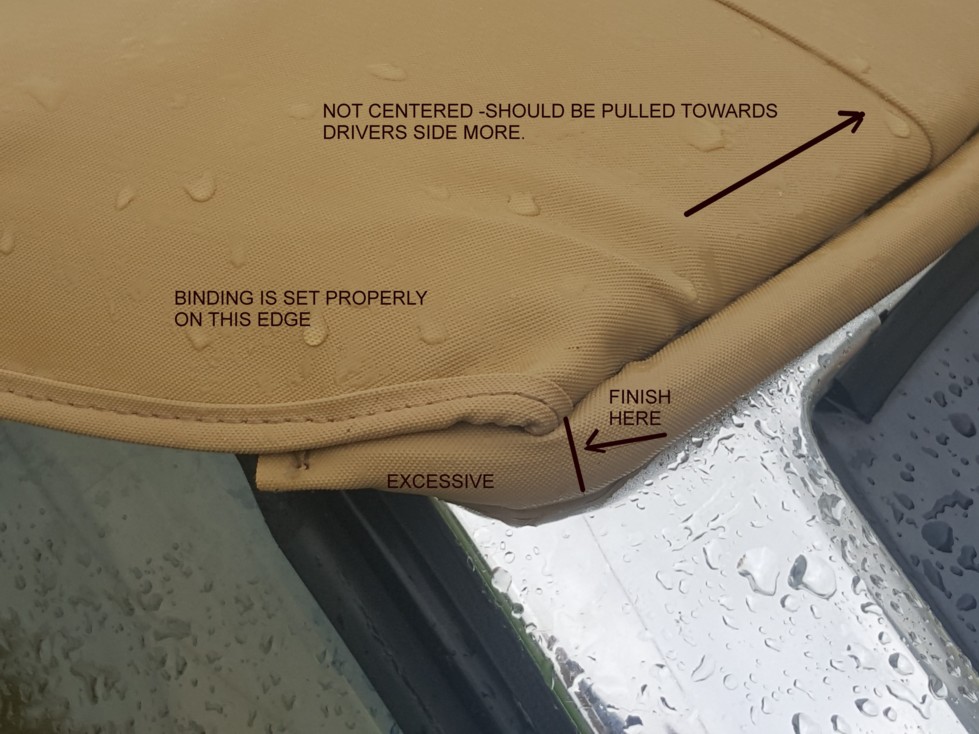

PASSENGER SIDE FRONT CORNER
(SECONDARY WIND SEAL WAS SEWN BY THE INSTALLER - TOO LONG)

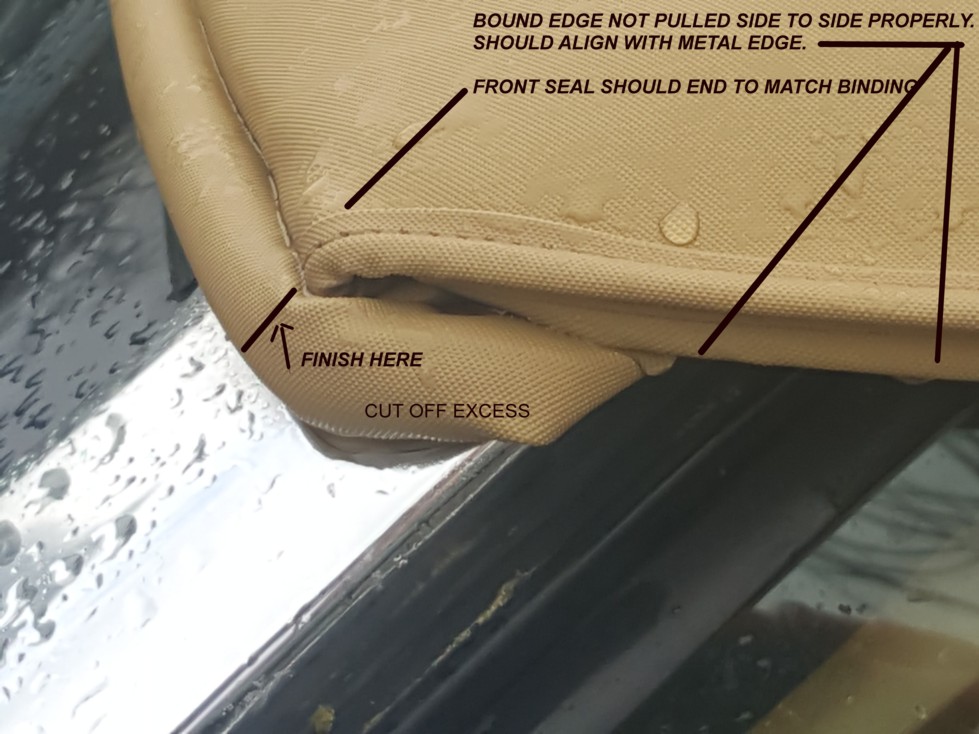

DRIVER SIDE FRONT CORNER
(SECONDARY WIND SEAL WAS SEWN BY THE INSTALLER - TOO LONG)

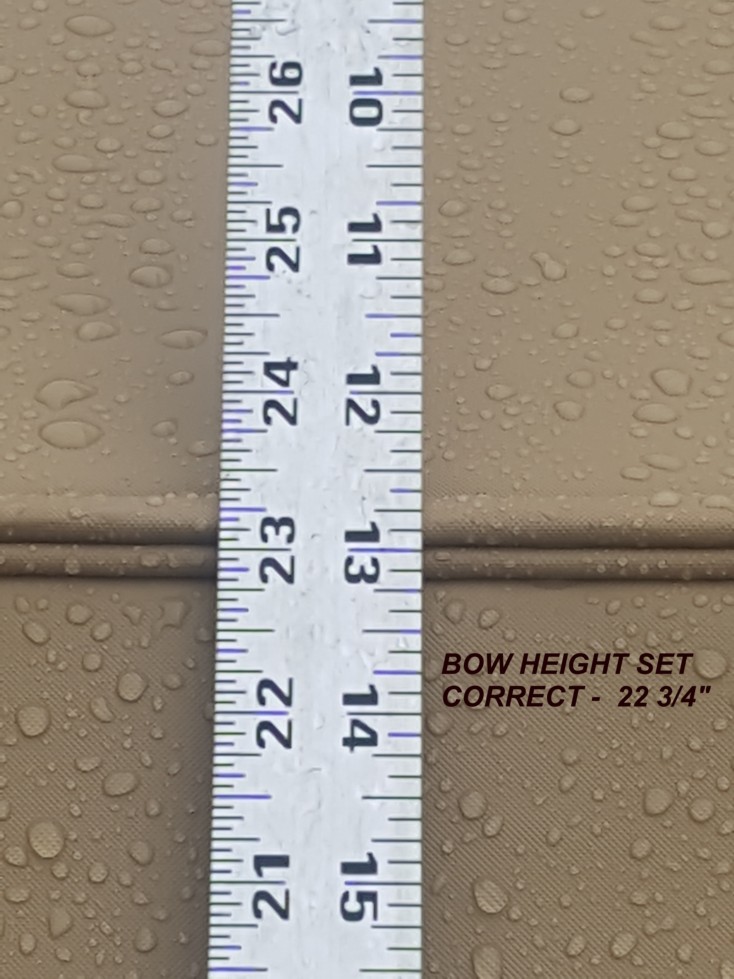

REAR BOW HEIGHT IS SET CORRECT

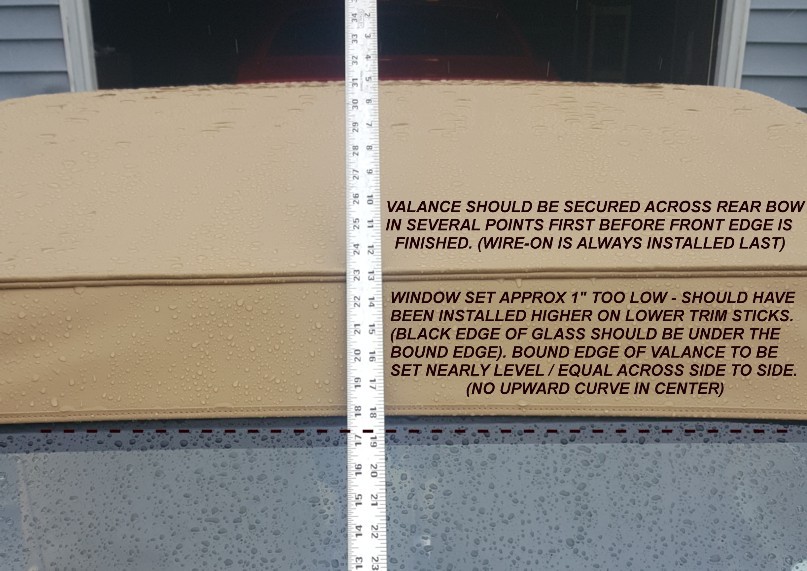

VALANCE ABOVE WINDOW IS NOT SET PROPERLY

WITH THE VALANCE SET WRONG (SHOULD NOT HAVE "UPWARD CURVATURE IN CENTER) TOO MUCH OF THE TOP
OF THE GLASS IS EXPOSED. WITH VALANCE SET PROPERLY AND WITH THE GLASS SET APPROX 1" HIGHER
THE APPEARANCE WOULD BE CORRECT.
UNFORTUNATELY THE INSTALLER CUT OFF TOO MUCH EXCESS AT THE BOTTOM EDGE AT THE TRIM STICKS

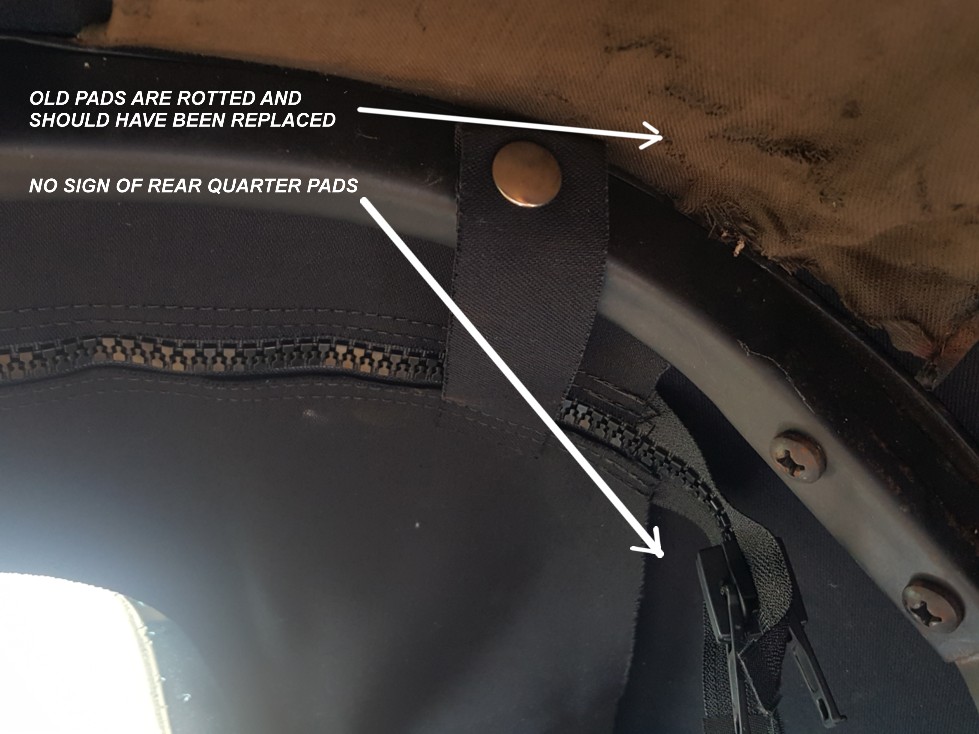

PAD ISSUES

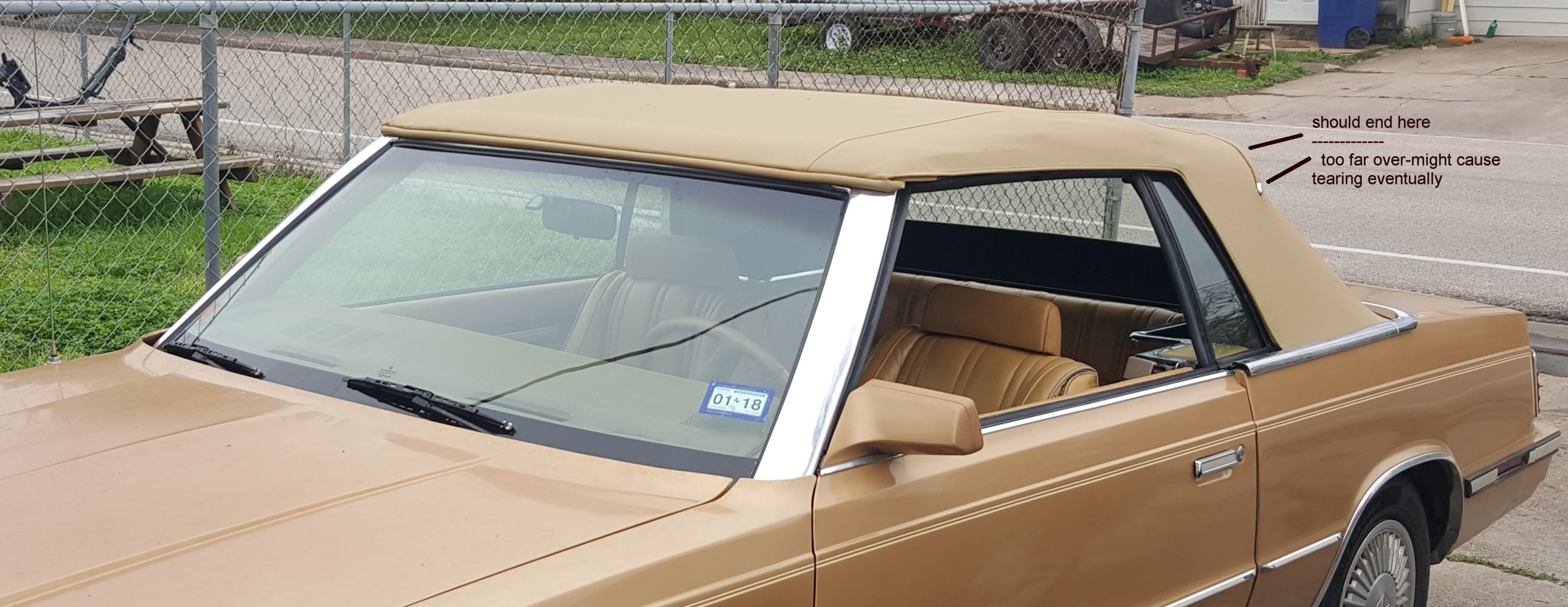

WIRE-ON TRIM INSTALLED TOO LONG
SHOULD NOT BE SO FAR OVER THE CURVE OF THE BOW
THE TIPS WILL CUT THRU THE MATERIAL DUE TO STREES WHEN FOLDING DOWN
